LIFTHO NEO electric lift winch, 600-1000kg, 208v, 220v and 400v
CE standard
Liftho electric lifting winch for lift cabin installation
The LIFTHO NEO is a wire-rope electric winch for lifting people with NEO System electronic overload.
The control box is integrated, allowing the winch to be controlled directly from the push-button box (once the latter is connected to the winch).
Designed specifically for the lift industry to lifting people in compliance with CE regulations, LIFTHO lift winch is a quick and easy solution to suspended scaffolding and can reach lifting capacities of 600, 800 or 1000 kg (LIFTHO 600, 800 or 1000) in single-phase or three-phase and voltages of 208v, 220v, 230v or 400v depending on the model chosen and country of use.
User Benefits
- NEO System electronic overload : stop of the winch if the maximum load is exceeded, exact weighing of the lifted load (in real time), logging of the number of hours of use, overload adjustment.
- Buzzer if the maximum load is exceeded
- One-piece aluminum housing very resistant to prevent corrosion
- Simplified maintenance thanks to easy access to the mechanical part
- Obligation to use with a fall arrest system / safety block Securichute or Securistop
Additional information
| Weight | N/A |
|---|---|
| Model | LIFTHO 600 NEO, LIFTHO 800 NEO, LIFTHO 1000 NEO |
| Tension | 1~230V, 3~208V-220V, 3~400V |
| Frequency | 50Hz, 60Hz |
Features:
| Order type:
End of cable sensor: Top limit switch: Slack rope safety: Controlled manual descent: |
integrated
Yes Yes Yes Yes |
Technical characteristics :
LIFTHO 600 NEO | LIFTHO 800NEO | LIFTHO 1000 NEO 1~ | LIFTHO 1000 NEO 3~ | |
Type | 526 C (1~), 526 E (3~) | 527 F (1~) | 527M | 527, 527P (3~) |
WLL* | 600 | 800 | 1000 | 1000 |
Tension | 1~ 220-240V 3~380-415V | 1~230V | 1~230V | 527 - 380-415V 527P - 208-220V |
Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz | 527 - 50/60 Hz 527P - 60Hz |
Speed | 50Hz - 9m/min 60Hz - 11m/min | 50Hz - 7m/min 60Hz - 8.7m/min | 50Hz - 7m/min | 527 50Hz - 9m/min 60Hz - 11m/min 527P 60Hz - 9m/min |
Weight | 51 kg | 59kg | 59kg | 59kg |
Steel cable | ⌀ 8.3 mm 5x19, 6x17, 5x26 | ⌀ 9.5 mm 5x19, 5x26 | ⌀ 10.3 mm 5x19, 5x26 | ⌀ 10.3 mm 5x19, 5x26 |
*WLL: Working Load Limit
Use
Mainly intended for professionals involved in installation or dismantling of elevators, the elevator winch for lifting personnel Liftho NEO 600, 800 and 1000 kg can be installed at the head of the car, on the wall or in the lift pit.
| Liftho winch at the head of the cabin |  |

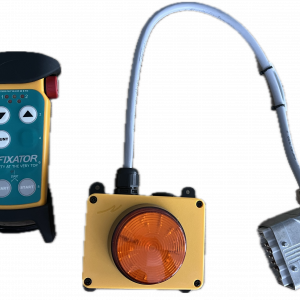

To control the raising and lowering of the suspended platform, the operator has a button box directly connected to the winch. As an option, this electric winch can also be controlled by radio control with a range of 100m (328 ft) to avoid any cable clutter.
In compliance with specific standards for lifting people, CE standard LIFTHO 600/800/1000 NEO winches must be used with a safety block (fall prevention system) Sécurichute.
They can also be used with a deflecting (diverting) or reeving pulley allowing, in the latter case of use, to double their lifting capacity.
To find out about our reeving solutions, please contact us.
Standard equipment
Your product comes with…
 |
 |
 |
Button Box |
NEO System electronic overload |
Top limit switch plate |
