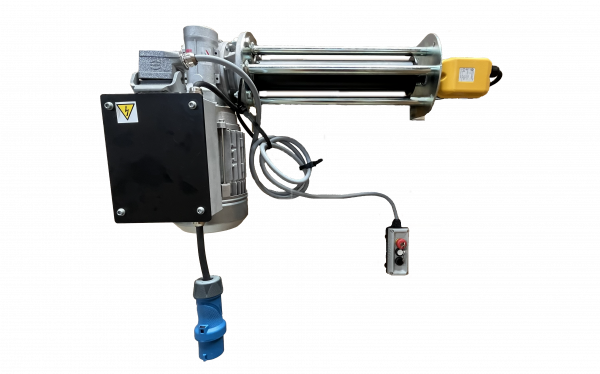

Winch for basketball hoop
CE standard
Product description
The basketball winch allows the basketball hoops to be raised and lowered salles multisport ou gymnases.
Conçu pour répondre aux exigences des panneaux de basket relevables en charpente, dont le poids croissant nécessite une motorisation plus puissante.
Its maximum load capacity is 300 kg.
Two models are available: non.
Benefits Users
Comfort :
- Compact and lightweight;
- Quick connection without opening the enclosure thanks to an integrated 6-pin connector and power socket.;
- Remote control (optional) for wirelessly operating the lowering and raising of basketball backboards.
Security :
- Motor protected by thermal probe in case of overheating;
- Key-operated wall-mounted control with emergency stop for increased safety (2m integrated cable and extensions available as required);
- Upper limit switch and lower limit switch;
- Tachometer cover (optional);
- Conçu selon la norme EN 14492.
Additional information
| Weight | N/A |
|---|---|
| Model | Non-detachable, Detachable |
Features
| Overload type: | Mechanic |
| Controlled manual descent: | Yes |
Technical Characteristics
Non-release basketball winch | Clutchable basketball winch | |
Sales code | 540122 | 540123 |
WLL* | 300kg | 300kg |
Tension | 1~230V | 1~230V |
Frequency | 50Hz | 50Hz |
Speed | 7m/min | 7m/min |
Weight | 31 kg | 37 kg |
Dimensions | 770x430x320 mm | 750x490x320 mm |
Ø and type of cable | Ø6.3 mm - 7x7x0.7 galvanised steel | Ø6.3 mm - 7x7x0.7 galvanised steel |
Engine brake | Non-detachable | Clutch |
Winding capacity Cable Ø 6.3 mm | 7m | 7m |
*WLL: Working Load Limit
Standard equipment
Your product comes with…
Wall-mounted key box with 2m cable (extensions available as needed) |
6-pin connector for quick connection of the keyed wall box |
Power supply unit with 0.5 m cable (extension leads available as needed) |
Upper and lower limit switches |
